BYW77PI-200 - HIGH EFFICIENCY FAST RECOVERY RECTIFIER DIODES

Datasheet Summary

Description

Single chip rectifier suited for switchmode power supply and high frequency DC to DC converters.

Packaged in SOD93, or DOP3I this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.

Features

  • SUITED FOR SMPS VERY LOW.

📥 Download Datasheet

Datasheet preview – BYW77PI-200

Datasheet Details

Part number BYW77PI-200
Manufacturer STMicroelectronics
File Size 68.07 KB
Description HIGH EFFICIENCY FAST RECOVERY RECTIFIER DIODES
Datasheet download datasheet BYW77PI-200 Datasheet
Additional preview pages of the BYW77PI-200 datasheet.

📁 Similar Datasheet

  • BYW77-100 - RECTIFIERS (Microsemi Corporation)
  • BYW77-150 - RECTIFIERS (Microsemi Corporation)
  • BYW77-50 - RECTIFIERS (Microsemi Corporation)
  • BYW72 - Fast Silicon Mesa Rectifiers (Vishay Telefunken)
  • BYW72 - GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER (General Semiconductor)
  • BYW72GP - SINTERED GLASS JUNCTION FAST SWITCHING PLASTIC RECTIFIER (Gulf Semiconductor)
  • BYW73 - GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER (General Semiconductor)
  • BYW73 - Fast Silicon Mesa Rectifiers (Vishay Telefunken)
  • BYW73GP - SINTERED GLASS JUNCTION FAST SWITCHING PLASTIC RECTIFIER (Gulf Semiconductor)
  • BYW74 - GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER (General Semiconductor)
Other Datasheets by STMicroelectronics
  • BYW77PI - HIGH EFFICIENCY FAST RECOVERY RECTIFIER DIODES
  • BYW77PI200 - HIGH EFFICIENCY FAST RECOVERY RECTIFIER DIODES
  • BYW77P - HIGH EFFICIENCY FAST RECOVERY RECTIFIER DIODES
  • BYW77P-200 - HIGH EFFICIENCY FAST RECOVERY RECTIFIER DIODES
  • BYW77P200 - HIGH EFFICIENCY FAST RECOVERY RECTIFIER DIODES
  • BYW77 - HIGH EFFICIENCY FAST RECOVERY DIODES
  • BYW77 - HIGH EFFICIENCY FAST RECOVERY RECTIFIER DIODES
  • BYW77G-200 - HIGH EFFICIENCY FAST RECOVERY DIODES

Full PDF Text Transcription

Click to expand full text

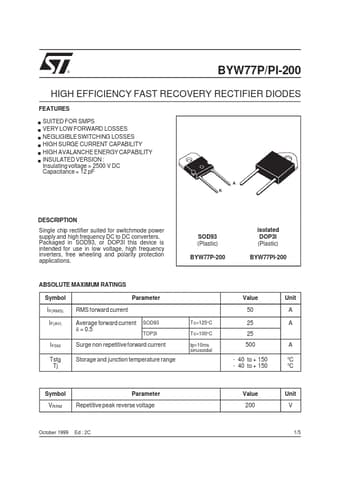

® BYW77P/PI-200 HIGH EFFICIENCY FAST RECOVERY RECTIFIER DIODES FEATURES SUITED FOR SMPS VERY LOW FORWARD LOSSES NEGLIGIBLE SWITCHING LOSSES HIGH SURGE CURRENT CAPABILITY HIGH AVALANCHE ENERGY CAPABILITY INSULATED VERSION : Insulating voltage = 2500 V DC Capacitance = 12 pF A K DESCRIPTION Single chip rectifier suited for switchmode power supply and high frequency DC to DC converters. Packaged in SOD93, or DOP3I this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications. SOD93 (Plastic) BYW77P-200 isolated DOP3I (Plastic) BYW77PI-200 ABSOLUTE MAXIMUM RATINGS Symbol IF(RMS) IF(AV) RMS forward current Average forward current δ = 0.
