BYW77G-200 - HIGH EFFICIENCY FAST RECOVERY DIODES

Datasheet Summary

Description

Single rectifier suited for switchmode power supply and high frequency DC to DC converters.

Packaged in D2PAK, this surface mount device is intended for use in high frequency inverters, free wheeling and polarity protection applications.

Features

1 3 VERY SMALL.

Datasheet Details

Part number	BYW77G-200
Manufacturer	STMicroelectronics
File Size	66.25 KB
Description	HIGH EFFICIENCY FAST RECOVERY DIODES
Datasheet	BYW77G-200 Datasheet
Additional preview pages of the BYW77G-200 datasheet.

📁 Similar Datasheet

BYW77-100 - RECTIFIERS (Microsemi Corporation)

BYW77-150 - RECTIFIERS (Microsemi Corporation)

BYW77-50 - RECTIFIERS (Microsemi Corporation)

BYW72 - Fast Silicon Mesa Rectifiers (Vishay Telefunken)

BYW72 - GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER (General Semiconductor)

BYW72GP - SINTERED GLASS JUNCTION FAST SWITCHING PLASTIC RECTIFIER (Gulf Semiconductor)

BYW73 - GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER (General Semiconductor)

BYW73 - Fast Silicon Mesa Rectifiers (Vishay Telefunken)

BYW73GP - SINTERED GLASS JUNCTION FAST SWITCHING PLASTIC RECTIFIER (Gulf Semiconductor)

BYW74 - GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER (General Semiconductor)

Full PDF Text Transcription

Click to expand full text

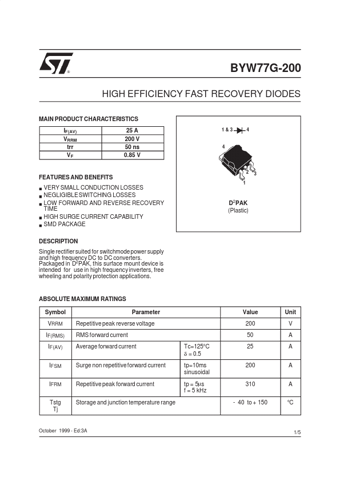

® BYW77G-200 HIGH EFFICIENCY FAST RECOVERY DIODES MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM trr VF 25 A 200 V 50 ns 0.85 V 1&3 4 4 2 FEATURES AND BENEFITS 1 3 VERY SMALL CONDUCTION LOSSES NEGLIGIBLE SWITCHING LOSSES LOW FORWARD AND REVERSE RECOVERY TIME HIGH SURGE CURRENT CAPABILITY SMD PACKAGE DESCRIPTION Single rectifier suited for switchmode power supply and high frequency DC to DC converters. Packaged in D2PAK, this surface mount device is intended for use in high frequency inverters, free wheeling and polarity protection applications.
