EMIF02-02OABRY Datasheet, filter, STMicroelectronics

EMIF02-02OABRY Features

  • Filter
  • Attenuation profile compliant with BroadR Reach™ requirements from -40 °C to 125 °C
  • Return loss (Sdd11) at 60 MHz: -20 dB
  • Components matching: 1% (between

PDF File Details

Part number:

EMIF02-02OABRY

Manufacturer:

STMicroelectronics ↗

File Size:

1.00MB

Download:

📄 Datasheet

Description:

Automotive grade integrated protected low pass filter. The EMIF02-02OABRY is a highly integrated solution designed to suppress EMI noise in BroadR Reach™ interfaces in automotive applicati

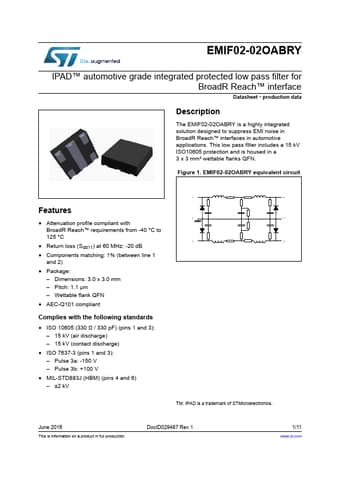

Datasheet Preview: EMIF02-02OABRY 📥 Download PDF (1.00MB)
Page 2 of EMIF02-02OABRY Page 3 of EMIF02-02OABRY

EMIF02-02OABRY Application

  • Applications This low pass filter includes a 15 kV ISO10605 protection and is housed in a 3 x 3 mm² wettable flanks QFN. Figure 1. EMIF02-02OABRY e
