EMIF02-1003M6

2 line IPAD EMI filter and ESD protection

EMIF02-1003M6 Features

* Dual line EMI symmetrical (I/O) low-pass filter

* High efficiency in EMI filtering

* Very low PCB space consumption: 1.0 mm x 1.45 mm

* Very thin package: 0.6 mm max

* High efficiency in ESD suppression (IEC 61000-4-2 level 4).

* High reliability offered by monolithic integ

EMIF02-1003M6 General Description

The EMIF02-1003M6 is a 2 line highly integrated device designed to suppress EMI/RFI noise in all systems exposed to electromagnetic interference. This filter includes ESD protection circuitry, which prevents damage to the application when subjected to ESD surges up to 15 kV on all pins. Micro QFN 1.

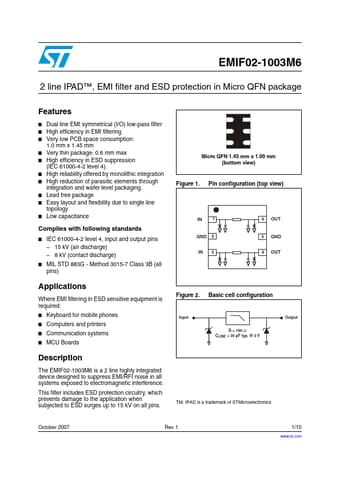

EMIF02-1003M6 Datasheet (195.75 KB)

Preview of EMIF02-1003M6 PDF

Datasheet Details

Part number:

EMIF02-1003M6

Manufacturer:

STMicroelectronics ↗

File Size:

195.75 KB

Description:

2 line ipad emi filter and esd protection.
