EMIF02-AV01F3

EMI filter and ESD protection

EMIF02-AV01F3 Features

* High-density capacitor

* EMI low-pass filter and ESD protection

* High-efficiency in EMI filtering

* Lead-free package

* 400 µm pitch

* Very small PCB footprint: 0.77 mm x 1.17 mm

* Very thin package: 0.605 mm

* High reliability offered by monolithic integration

EMIF02-AV01F3 General Description

The EMIF02-AV01F3 is a highly integrated array designed to suppress EMI / RFI noise and provide impedance matching for mobile phones and portable applications. The EMIF02-AV01F3 is in Flip-Chip package to offer space saving and high RF performance. Additionally, this low-pass filter includes an ESD .

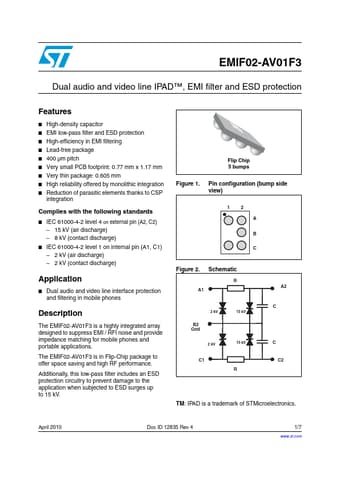

EMIF02-AV01F3 Datasheet (296.35 KB)

Preview of EMIF02-AV01F3 PDF

Datasheet Details

Part number:

EMIF02-AV01F3

Manufacturer:

STMicroelectronics ↗

File Size:

296.35 KB

Description:

Emi filter and esd protection.
