ESDA14V2BP6

ESD protection

ESDA14V2BP6 Features

* 4 / 5 unidirectional (ESDA6V1P6 and ESDA6V1-5P6) and bidirectional (ESDA14V2BP6 and ESDA25-4BP6) Transil functions

* Breakdown voltage:

* VBR = 6.1 V min., 14.2 V min. and 25 V min.

* Low leakage current:

* < 500 nA (ESDA6V1P6 / ESDA6V1-5P6)

* < 1 μA

ESDA14V2BP6 General Description

The ESDAxxxP6 are monolithic arrays designed to protect up to 5 lines against ESD transients. These devices are ideal where board space saving and reduced line capacitance are required. DS4625 - Rev 6 - August 2022 For further information contact your local STMicroelectronics sales office. www.st..

ESDA14V2BP6 Datasheet (355.98 KB)

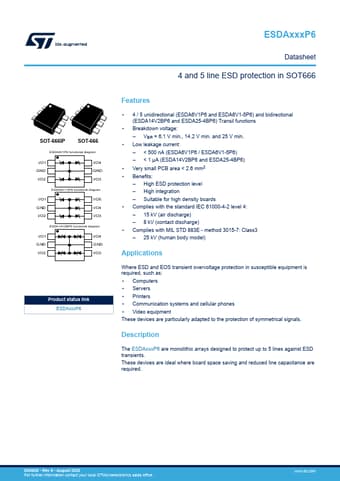

Preview of ESDA14V2BP6 PDF

Datasheet Details

Part number:

ESDA14V2BP6

Manufacturer:

STMicroelectronics ↗

File Size:

355.98 KB

Description:

Esd protection.
ESDAxxxP6 Datasheet 4 and 5 line ESD protection in SOT666 SOT-666IP SOT-666 ESDA6V1P6 functional diagram I/O1 GND I/O2 I/O4 GND I/O3 ESDA6V1-5P6.
