ESDA14V2LY - Automotive dual Transil array

Product Overview

STMicroelectronics

📥 Download Datasheet

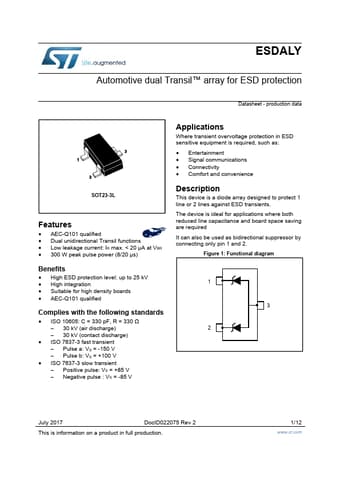

ESDA14V2LY Automotive dual Transil array by STMicroelectronics - Datasheet Preview — Datasheet preview – ESDA14V2LY

Datasheet Details

Part number	ESDA14V2LY
Manufacturer	STMicroelectronics
File Size	334.44 KB
Description	Automotive dual Transil array
Datasheet	ESDA14V2LY Datasheet
Note	This datasheet PDF includes multiple part numbers: ESDA14V2LY, ESDA25LY. Please refer to the document for exact specifications by model.
Additional preview pages of the ESDA14V2LY datasheet.

Product details

Description

This device is a diode array designed to protect 1 line or 2 lines against ESD transients.

Features

AEC-Q101 qualified.
Dual unidirectional Transil functions.
Low leakage current: IR max. < 20 µA at VBR.
300 W peak pulse power (8/20 µs) Benefits.
High ESD protection level: up to 25 kV.
High integration.
Suitable for high density boards.
AEC-Q101 qualified Complies with the following standards.
ISO 10605: C = 330 pF, R = 330 Ω  30 kV (air discharge)  30 kV (contact discharge).
ISO 7637-3 fast transient  Pulse a: VS = -150 V  Pulse b: VS = +.
