ESDA14V2-4BF3

Quad bidirectional TRANSIL array

ESDA14V2-4BF3 Features

* 4 Bidirectional Transil functions ESD Protection: IEC61000-4-2 level 4 Stand off voltage: 12 V Min. Low leakage current < 0.5 µA 50 W Peak pulse power (8/20 µs) Flip Chip (5 bumps) Benefits

* High ESD protection level High integrationSuitable for high

ESDA14V2-4BF3 General Description

The ESDA14V2-4BF3 is a monolithic array designed to protect up to 4 lines in a bidirectional way against ESD transients.The device is ideal for situations where board space saving is requested. This device is particularly adapted to the protection of symmetrical signals. TM: Transil is ASD a tradem.

ESDA14V2-4BF3 Datasheet (182.69 KB)

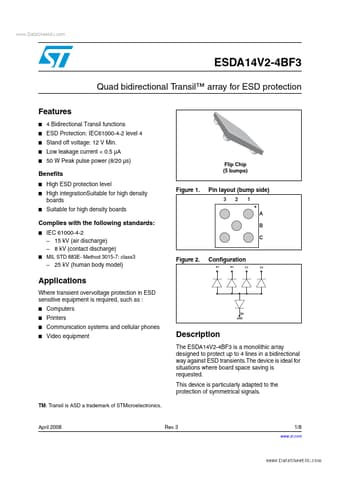

Preview of ESDA14V2-4BF3 PDF

Datasheet Details

Part number:

ESDA14V2-4BF3

Manufacturer:

STMicroelectronics ↗

File Size:

182.69 KB

Description:

Quad bidirectional transil array.
