ESDALC6V1-1BU2 Datasheet, Capacitance, ST Microelectronics

ESDALC6V1-1BU2 Features

  • Capacitance
  • Breakdown voltage VBR = 6.1 V min.
  • Bidirectional device
  • Multiple ESD strike sustainability
  • Very low diode capacitance: 5 pF typ. at 0 V

PDF File Details

Part number:

ESDALC6V1-1BU2

Manufacturer:

STMicroelectronics ↗

File Size:

135.49kb

Download:

📄 Datasheet

Description:

Single-line low capacitance. The ESDALC6V1-1BU2 is a bidirectional single line TVS diode designed to protect data lines or other I/O ports against ESD transients.

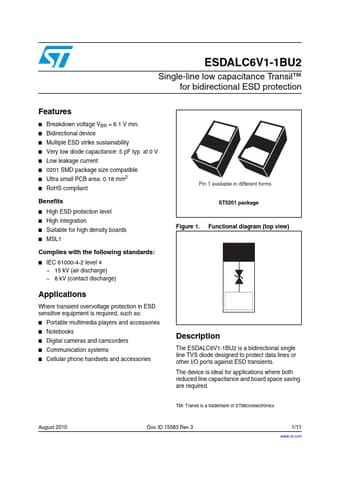

Datasheet Preview: ESDALC6V1-1BU2 📥 Download PDF (135.49kb)
Page 2 of ESDALC6V1-1BU2 Page 3 of ESDALC6V1-1BU2

ESDALC6V1-1BU2 Application

  • Applications Where transient overvoltage protection in ESD sensitive equipment is required, such as:
  • Portable multimedia players and acces
