ESDALC6V1-1U2

TVS Clamping Arrays

ESDALC6V1-1U2 Features

* Breakdown voltage VBR = 6.1 V min. Unidirectional device Multiple ESD strike sustainability Very low diode capacitance: 12 pF typ. at 0 V Low leakage current 0201 SMD package size compatible Ultra small PCB area: 0.18 mm2 RoHS compliant Figure 1. ST02

ESDALC6V1-1U2 General Description

The ESDALC6V1-1U2 is a unidirectional single line TVS diode designed to protect the data lines or other I/O ports against ESD transients. The device is ideal for applications where both reduced line capacitance and board space saving are required. TM: Transil is a trademark of STMicroelectronics O.

ESDALC6V1-1U2 Datasheet (239.74 KB)

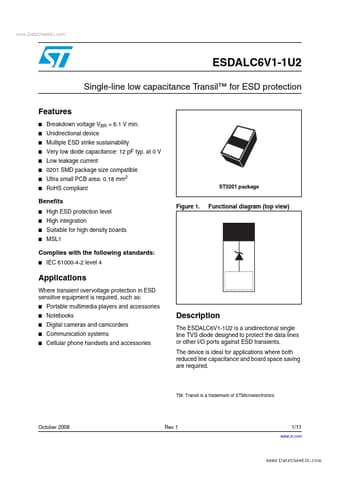

Preview of ESDALC6V1-1U2 PDF
