ESDALC6V1-5T6 - TVS Clamping Arrays

ESDALC6V1-5T6 Description

ESDALC6V1-5T6 Low capacitance Transil™ arrays for ESD protection .
The ESDALC6V1-5T6 is monolithic arrays designed to protect up to 5 lines against ESD transients.

ESDALC6V1-5T6 Features

* 5 uni-directional Transil diodes Breakdown voltage VBR = 6.1 V min. Low diode capacitance: 7 pF typ. Low leakage current < 100 nA Very small PCB area: 1.0 mm² 350 µm pitch micro-package Lead-free and RoHS package Figure 1. Micro DFN package 1.0 x 1.0-6L Co

ESDALC6V1-5T6 Applications

* Where transient overvoltage protection in ESD sensitive equipment is required, such as:
* Cellular phone handsets and accessories
* Computers www. DataSheet4U. com
* Printers

📥 Download Datasheet

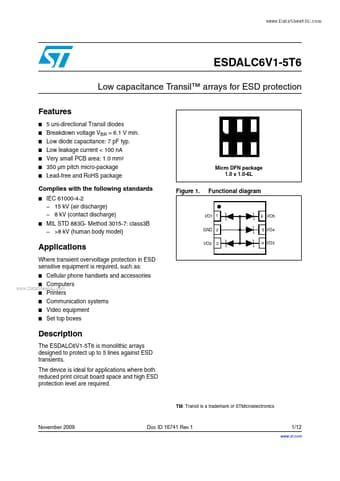

Preview of ESDALC6V1-5T6 PDF
