ESDALC6V1-1M2

Single line low capacitance Transil

ESDALC6V1-1M2 Features

* Single line low capacitance Transil diode

* Unidirectional ESD protection

* ESD protection > 30 kV (IEC 61000-4-2 contact discharge)

* Breakdown voltage VBR = 6.1 V min.

* Low diode capacitance (22 pF @ 0 V)

* Low leakage current (< 100 nA @ 3 V)

* Very small PCB area (

ESDALC6V1-1M2 General Description

The ESDALC6V1-1M2 is a unidirectional single line TVS diode designed to protect the data lines or other I/O ports against ESD transients. The device is ideal for applications where both reduced line capacitance and board space saving are required. June 2012 This is information on a product in full .

ESDALC6V1-1M2 Datasheet (194.42 KB)

Preview of ESDALC6V1-1M2 PDF

Datasheet Details

Part number:

ESDALC6V1-1M2

Manufacturer:

STMicroelectronics ↗

File Size:

194.42 KB

Description:

Single line low capacitance transil.

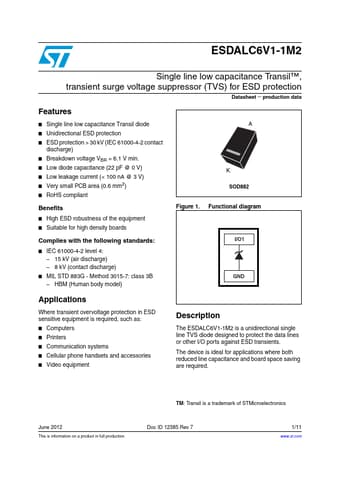

ESDALC6V1-1M2 Single line low capacitance Transilâ„¢, transient surge voltage suppressor (TVS) for ESD protection Datasheet

* production data .
