ESDALD08BC ESD Protection Diodes Array

The ESDALDxxBC series low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available in bidirectional configurations and is rated at 350 Watts for an 8/20μs waveshape. This series offers a low capacitance .

ESDALD08BC Features

* Peak pulse power 350W @ 8/20us waveform

* IEC 61000-4-2 (ESD) ±30kV(air), ±30kV(contact)

* Protects one directional I/O line 1 2

* Low leakage current

* Low clamping voltage

* Meet MSL level1

* Halogen free and RoHS compliant 3. Appl

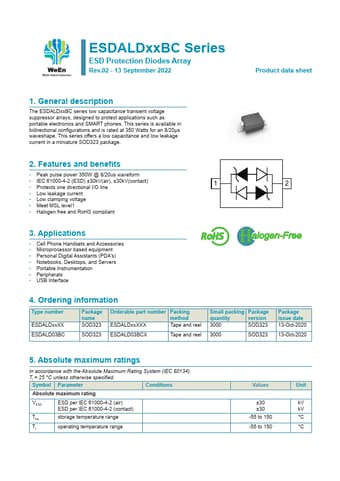

ESDALD03BC-WeEn.pdf

ESDALD08BC Datasheet Preview — This datasheet PDF includes multiple part numbers: ESDALD08BC, ESDALD03BC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ESDALD08BC, ESDALD03BC

Manufacturer:

WeEn

File Size:

353.18 KB

Description:

Esd protection diodes array.

Note:

This datasheet PDF includes multiple part numbers: ESDALD08BC, ESDALD03BC.
Please refer to the document for exact specifications by model.
