ESDALD05UG4 - ESD Protection Diodes Array

WeEn

ESDALD05UG4 Description

ESDALD05UG4 ESD Protection Diodes Array Rev.01 - 08 May 2021 Preliminary data sheet 1.General .
The ESDALD05UG4 is a low capacitance TVS (Transient Voltage Suppressor) array designed to protect high speed data interfaces.

ESDALD05UG4 Features

* Peak pulse power 60W @ 8/20μs waveform
* Protects two or four I/O lines
* IEC 61000-4-2 (ESD) ±15kV(air), ±8kV(contact)
* IEC 61000-4-5 (Lightning) 4A (8/20μs)
* Low capacitance
* Low leakage current
* 5V operating voltage
* Solid-sta

ESDALD05UG4 Applications

* High Definition Multi-Media Interface (HDMI)
* Digital Visual Interface (DVI)
* USB 1.1/2.0/OTG
* IEEE 1394 Firewire Ports
* Notebooks & Handhelds
* Projection TV & Monitors
* Set-top box
* Flat Panel Displays
* PCI Express 1

📥 Download Datasheet

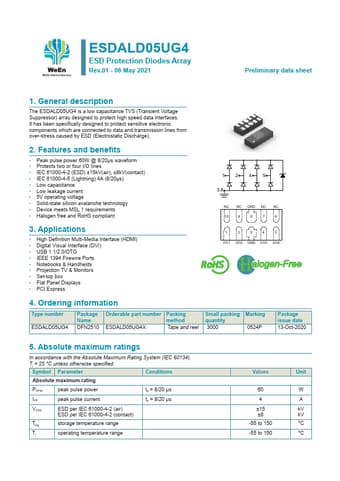

ESDALD05UG4 Datasheet Preview — Preview of ESDALD05UG4 PDF

Datasheet Details

Part number: ESDALD05UG4
Manufacturer: WeEn
File Size: 1.43 MB
Datasheet: ESDALD05UG4-WeEn.pdf
Description: ESD Protection Diodes Array
