ESDALD03BC - ESD Protection Diodes Array

WeEn

ESDALD03BC Description

ESDALDxxBC Series ESD Protection Diodes Array Rev.02 - 13 September 2022 Product data sheet 1.General .
The ESDALDxxBC series low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART pho.

ESDALD03BC Features

* Peak pulse power 350W @ 8/20us waveform
* IEC 61000-4-2 (ESD) ±30kV(air), ±30kV(contact)
* Protects one directional I/O line 1 2
* Low leakage current
* Low clamping voltage
* Meet MSL level1
* Halogen free and RoHS compliant 3. Appl

📥 Download Datasheet

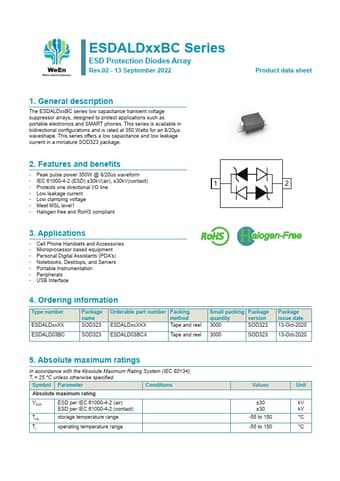

ESDALD03BC Datasheet Preview — Preview of ESDALD03BC PDF

Datasheet Details

Part number: ESDALD03BC
Manufacturer: WeEn
File Size: 353.18 KB
Datasheet: ESDALD03BC-WeEn.pdf
Description: ESD Protection Diodes Array
