ESDALD05BC

ESD Protection Diodes Array

ESDALD05BC Features

* Peak pulse power 350W @ 8/20us waveform

* IEC 61000-4-2 (ESD) ±30kV(air), ±30kV(contact)

* Protects one directional I/O line 1 2

* Low leakage current

* Low clamping voltage

* Meet MSL level1

* Halogen free and RoHS compliant 3. Appl

ESDALD05BC General Description

The ESDALDxxBC series low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available in bidirectional configurations and is rated at 350 Watts for an 8/20μs waveshape. This series offers a low capacitance .

ESDALD05BC Datasheet (353.18 KB)

Rating: 1 ★ (1 votes)

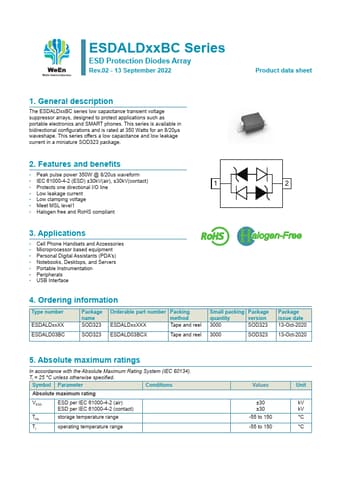

Preview of ESDALD05BC PDF

Datasheet Details

Part number:

ESDALD05BC

Manufacturer:

WeEn

File Size:

353.18 KB

Description:

Esd protection diodes array.
