ESDALC6V1-5P6 - ESD protection

Product Overview

STMicroelectronics

📥 Download Datasheet

ESDALC6V1-5P6 ESD protection by STMicroelectronics - Datasheet Preview — Datasheet preview – ESDALC6V1-5P6

Datasheet Details

Part number	ESDALC6V1-5P6
Manufacturer	STMicroelectronics
File Size	278.36 KB
Description	ESD protection
Datasheet	ESDALC6V1-5P6 Datasheet
Additional preview pages of the ESDALC6V1-5P6 datasheet.

Product details

Description

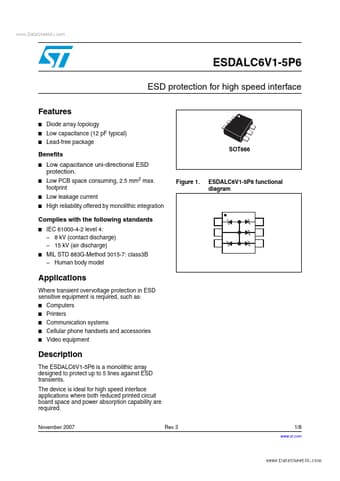

The ESDALC6V1-5P6 is a monolithic array designed to protect up to 5 lines against ESD transients.

Features

Diode array topology Low capacitance (12 pF typical) Lead-free package SOT666 Benefits.
Low capacitance uni-directional ESD protection. Low PCB space consuming, 2.5 mm2 max. footprint Low leakage current High reliability offered by monolithic integration Figure 1. ESDALC6V1-5P6 functional diagram Complies with the following standards.
IEC 61000-4-2 level 4:.
8 kV (contact discharge).
15 kV (air discharge) MIL STD 883G-Method 30.
