ESDALC6V1-5M6, ESDALC6V1M6 Datasheet - STMicroelectronics

ESDALC6V1-5M6 (ESDALC6V1xxM6) 4 and 5 line low capacitance TRANSIL array

The ESDALC6V1xxM6 is monolithic arrays designed to protect up to 4 or 5 lines against ESD transients. The device is ideal for applications where both reduced print circuit board space and power absorption capability are required. Order Code Part number ESDALC6V1M6 ESDALC6V1-5M6 Marking G H Complie.

ESDALC6V1-5M6 Features

* I/O1 1 6 I/O5 5 GND 4 I/O3

* www.DataSheet4U.com 4 unidirectional TRANSIL diodes (ESDALC6V1M6) 5 unidirectional TRANSIL diodes (ESDALC6V1-5M6) Breakdown Voltage VBR = 6.1 V min Low diode capacitance (12 pF typ at 0 V) Low leakage current < 70 nA Very small PCB area: 1.45 mm² 500 mi

ESDALC6V1M6_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: ESDALC6V1-5M6, ESDALC6V1M6. Please refer to the document for exact specifications by model.

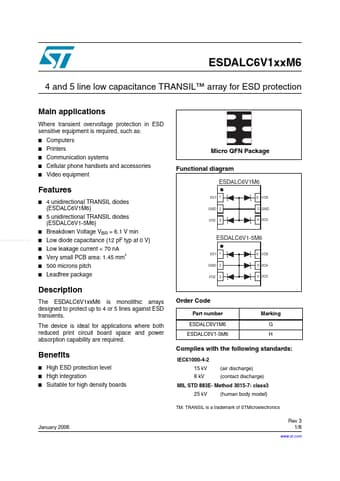

ESDALC6V1-5M6 Datasheet Preview Page 2 ESDALC6V1-5M6 Datasheet Preview Page 3

Datasheet Details

Part number:

ESDALC6V1-5M6, ESDALC6V1M6

Manufacturer:

STMicroelectronics ↗

File Size:

200.98 KB

Description:

(esdalc6v1xxm6) 4 and 5 line low capacitance transil array.

Note:

This datasheet PDF includes multiple part numbers: ESDALC6V1-5M6, ESDALC6V1M6.
Please refer to the document for exact specifications by model.
