ESDALC6V1-1BM2 Datasheet - STMicroelectronics

Single line low capacitance

ESDALC6V1-1BM2 Features

* www.DataSheet4U.com 1 line low capacitance TRANSIL diode Bidirectional ESD protection Breakdown Voltage VBR = 6.1 V min. Low diode capacitance (22 pF typ. at 0 V) Low leakage current: < 100 nA at 3 V Very small PCB area: 0.6 mm2 Leadfree package Functional diagram

ESDALC6V1-1BM2 General Description

The ESDALC6V1-1BM2 is a bidirectional single line TVS diode designed to protect the datalines or other I/O ports against ESD transients. The device is ideal for applications where both reduced line capacitance and board space saving are required. I/O2 Order code Part number ESDALC6V1-1BM2 Marking .

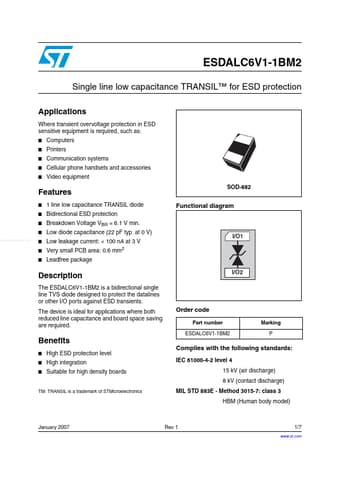

ESDALC6V1-1BM2 Datasheet (173.58 KB)

Preview of ESDALC6V1-1BM2 PDF

Datasheet Details

Part number:

ESDALC6V1-1BM2

Manufacturer:

STMicroelectronics ↗

File Size:

173.58 KB

Description:

Single line low capacitance.
ESDALC6V1-1BM2 Single line low capacitance TRANSIL™ for ESD protection Applications Where transient overvoltage protection in ESD sensitive equipment .
