ESDAXLC6-1BU2 Datasheet - STMicroelectronics

Single-line bidirectional ESD protection

ESDAXLC6-1BU2 Features

* Bidirectional device

* Extra low diode capacitance: 0.4 pF

* Low leakage current

* 0201 SMD package size compatible

* Ultra small PCB area: 0.18 mm2

* ECOPACK®2 and RoHS compliant component Complies with the following standards:

* IEC 61000-4

ESDAXLC6-1BU2 General Description

The ESDAXLC6-1BU2 is a bidirectional single line TVS diode designed to protect the data lines or other I/O ports against ESD transients. The device is ideal for applications where both reduced line capacitance and board space saving are required. March 2014 This is information on a product in full .

ESDAXLC6-1BU2 Datasheet (182.25 KB)

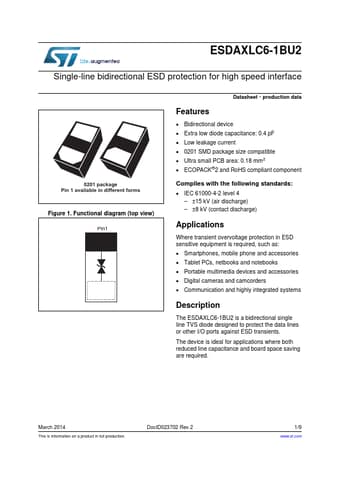

Preview of ESDAXLC6-1BU2 PDF

Datasheet Details

Part number:

ESDAXLC6-1BU2

Manufacturer:

STMicroelectronics ↗

File Size:

182.25 KB

Description:

Single-line bidirectional esd protection.
ESDAXLC6-1BU2 Single-line bidirectional ESD protection for high speed interface 0201 package Pin 1 available in different forms Figure 1. Functional.
