ESDAXXXP6 - Transil array

STMicroelectronics

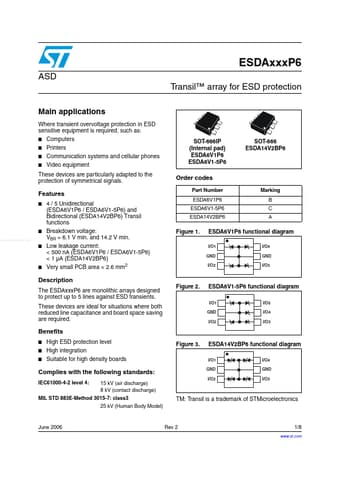

ESDAXXXP6 Datasheet Preview — Preview of ESDAXXXP6 PDF

Datasheet Details

Part number	ESDAXXXP6
Manufacturer	STMicroelectronics ↗
File Size	355.98 KB
Description	Transil array
Datasheet	ESDAXXXP6_STMicroelectronics.pdf

ESDAXXXP6 Product details

Description

The ESDAxxxP6 are monolithic arrays designed to protect up to 5 lines against ESD transients. High ESD protection level High integration Suitable for high density boards Figure 3. ESDA14V2BP6 functional diagram I/O1 GND I/O2 I/O4 GND I/O3 Complies with the following standards: IEC61000

Features

4 / 5 Unidirectional (ESDA6V1P6 / ESDA6V1-5P6) and Bidirectional (ESDA14V2BP6) Transil functions Breakdown voltage: VBR = 6.1 V min. and 14.2 V min. Low leakage current: < 500 nA (ESDA6V1P6 / ESDA6V1-5P6) < 1 µA (ESDA14V2BP6) Very small PCB area < 2.6 mm2.
www. DataSheet4U. com Figure 1. ESDA6V1P6 functional diagram I/O1 GND I/O2 I/O4 GND I/O3.
