ESDAXXSC5 Datasheet - STMicroelectronics

QUAD TRANSIL ARRAY FOR ESD PROTECTION

ESDAXXSC5 General Description

The ESDAxxSC5 and ESDAxxSC6 are monolithic voltage suppressors designed to protect components which are connected to data and transmission lines against ESD. They clamp the voltage just above the logic level supply for positive transients, and to a diode drop below ground for negative transient. 1 .

ESDAXXSC5 Datasheet (69.41 KB)

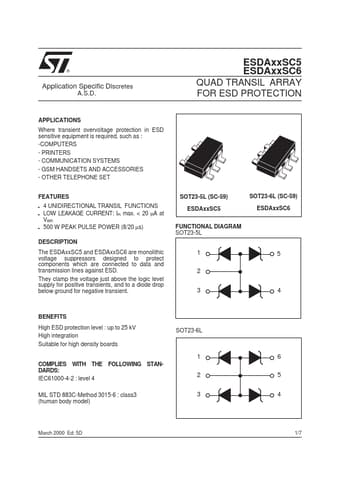

ESDAXXSC5 Datasheet Preview — Preview of ESDAXXSC5 PDF

Datasheet Details

Part number:

ESDAXXSC5

Manufacturer:

STMicroelectronics ↗

File Size:

69.41 KB

Description:

Quad transil array for esd protection.
® ESDAxxSC5 ESDAxxSC6 A.S.D. Application Specific Discretes QUAD TRANSIL ARRAY FOR ESD PROTECTION APPLICATIONS Where transient overvoltage protect.
