ESDAXLC6-1MY2 Datasheet, Tvs, STMicroelectronics

ESDAXLC6-1MY2 Features

  • Tvs
  • Extra low capacitance 0.6 pF max on a wide frequency spectrum (200 MHz 3000 MHz)
  • Unidirectional device
  • Low clamping factor VCL / VBR
  • Fast respons

PDF File Details

Part number:

ESDAXLC6-1MY2

Manufacturer:

STMicroelectronics ↗

File Size:

329.67kb

Download:

📄 Datasheet

Description:

Extra low capacitance single-line tvs. The ESDAXLC6-1MY2 is a single line Transil diode designed specifically for the protection of integrated circuits in portable equipmen

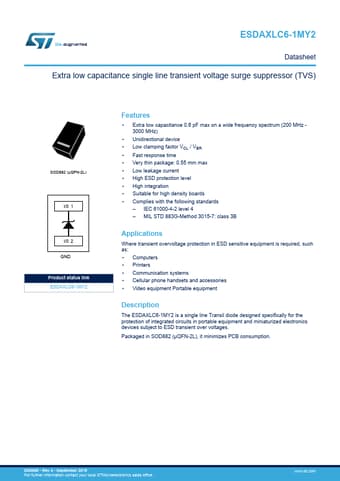

Datasheet Preview: ESDAXLC6-1MY2 📥 Download PDF (329.67kb)
Page 2 of ESDAXLC6-1MY2 Page 3 of ESDAXLC6-1MY2

ESDAXLC6-1MY2 Application

  • Applications Where transient overvoltage protection in ESD sensitive equipment is required, such as:
  • Computers
  • Printers
