ESDZV5-1BF4

Ultra low clamping single line bidirectional ESD protection

ESDZV5-1BF4 Features

* Ultra low clamping voltage: 7 V (IEC 61000-4-2 contact discharge 8 kV at 30 ns / 16 A TLP)

* Bidirectional device

* Low leakage current

* 0201 package

* ECOPACK2 compliant component

* Exceeds the followig standard:

* IEC 61000-4-2 level 4 = ±

ESDZV5-1BF4 General Description

The ESDZV5-1BF4 is a bidirectional single line TVS diode designed to protect the data line or other I/O ports against ESD transients. The device is ideal for applications where both reduced line capacitance and board space saving are required. DS11928 - Rev 3 - January 2022 For further information .

ESDZV5-1BF4 Datasheet (861.57 KB)

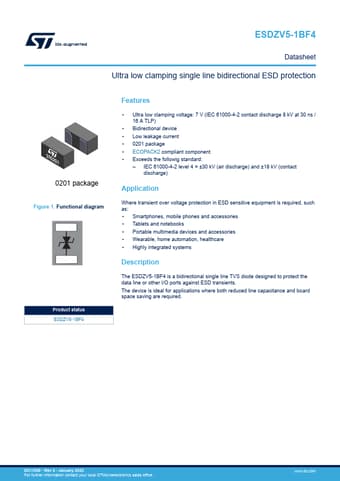

Preview of ESDZV5-1BF4 PDF

Datasheet Details

Part number:

ESDZV5-1BF4

Manufacturer:

STMicroelectronics ↗

File Size:

861.57 KB

Description:

Ultra low clamping single line bidirectional esd protection.
ESDZV5-1BF4 Datasheet Ultra low clamping single line bidirectional ESD protection 0201 package Figure 1. Functional diagram Product status ESDZV5-1BF.
