HCC4031B 64-STAGE STATIC SHIFT REGISTER

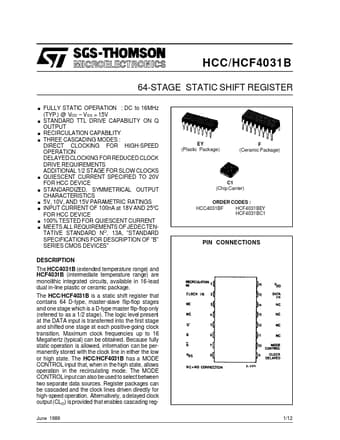

OF ”B” SERIES CMOS DEVICES” EY (Plastic Package) F (Ceramic Package) C1 (Chip Carrier) ORDER CODES : HCC4031BF HCF4031BEY HCF4031BC1 PIN CONNECTIONS DESCRIPTION The HCC4031B (extended temperature range) and HCF4031B (intermediate temperature range) are monolithic integrated circuits, available .

HCC/HCF4031B 64-STAGE STATIC SHIFT REGISTER . . . . . . . . . . FULLY STATIC OPERATION : DC to 16MHz (TYP.) @ VDD VSS = 15V STANDARD TTL DRIVE CAPABILITY ON Q OUTPUT RECIRCULATION CAPABILITY THREE CASCADING MODES : DIRECT CLOCKING FOR HIGH-SPEED OPERATION DELAYED CLOCKING FOR REDUCED CLOCK DRIVE REQUIREMENTS ADDITIONAL 1/2 STAGE FOR SLOW CLOCKS QUIESCENT CURRENT SPECIFIED TO 20V FOR HCC DEVICE STANDARDIZED, SYMMETRICAL OUTPUT CHARACTERISTICS 5V, 10V, AND 15V PARAMETRIC RATINGS INPUT .
