HCC1002 - Hi-Reliability RAD Capable Optoisolator

HCC1002 Description

Hi-Reliability RAD Capable Optoisolator HCC1002 .
This device is similar to Optek’s 4N series of optoisolators with exception of the die.

HCC1002 Features

* TID Capable to 100Krad (SI)/cm2 ELDRS (0.1rad/s)
* Neutron capable to 1E12 neutrons (14MeV)
* Processed to MIL-STD-19500 TXV level

HCC1002 Applications

* Circuit electrical isolation in space applications such as satellites, launchers, space vehicles and planetary rovers Dimensions Inches Millimeters Ltr Min Max Min Max A .061 .075 1.55 1.90 A1 .026 .034 0.66 0.88 B1 .022 .028 0.56 0.71 B2 .072 Ref 1.83 Ref B3 .006 .022 0.15 0.56 D .145 .

📥 Download Datasheet

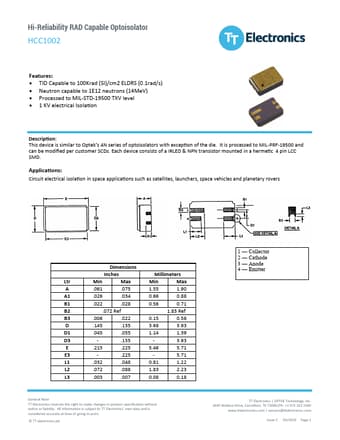

Preview of HCC1002 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HCC1002
Manufacturer
TT
File Size
630.89 KB
Datasheet
HCC1002-TT.pdf
Description
Hi-Reliability RAD Capable Optoisolator
