HCC4006B Datasheet - STMicroelectronics

HCC4006B 18-STAGE STATIC SHIFT REGISTER

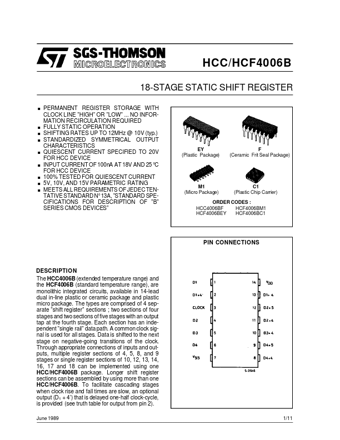

OF ”B” SERIES CMOS DEVICES” EY (Plastic Package) F (Ceramic Frit Seal Package) M1 (Micro Package) C1 (Plastic Chip Carrier) ORDER CODES : HCC4006BF HCF4006BM1 HCF4006BEY HCF4006BC1 PIN CONNECTIONS DESCRIPTION The HCC4006B (extended temperature range) and the HCF4006B (standard temperature ran.
HCC/HCF4006B 18-STAGE STATIC SHIFT REGISTER . . . . . . . . . PERMANENT REGISTER STORAGE WITH CLOCK LINE ”HIGH” OR ”LOW” NO INFORMATION RECIRCULATION REQUIRED FULLY STATIC OPERATION SHIFTING RATES UP TO 12MHz @ 10V (typ.) STANDARDIZED SYMMETRICAL OUTPUT CHARACTERISTICS QUIESCENT CURRENT SPECIFIED TO 20V FOR HCC DEVICE INPUT CURRENT OF 100nA AT 18V AND 25 °C FOR HCC DEVICE 100% TESTED FOR QUIESCENT CURRENT 5V, 10V, AND 15V PARAMETRIC RATING MEETS ALL REQUIREMENTS OF JEDEC TENTATIVE STANDARD N°.

HCC4006B_STMicroelectronics.pdf

Preview of HCC4006B PDF
HCC4006B Datasheet Preview Page 2 HCC4006B Datasheet Preview Page 3

Datasheet Details

Part number:

HCC4006B

Manufacturer:

STMicroelectronics ↗

File Size:

260.63 KB

Description:

18-stage static shift register.
