HCC240 Datasheet PDF - OPTEK Technologies (HCC240 / HCC242) Surface Mount Optically Coupled Isolator Specs

HCC240 - (HCC240 / HCC242) Surface Mount Optically Coupled Isolator

Datasheet Summary

Description

The HCC240 and HCC242 are optically coupled isolators, consisting of a gallium aluminum arsenide LED and a silicon phototransistor mounted and coupled in a miniature surface mount hermetic leadless chip carrier.

The HCC240 and HCC242 are identical except for the DC current transfer ratio.

Features

Surface mountable on ceramic or printed circuit board.
Miniature package saves circuit board area.
Electrical performance similar to 4N22A and 4N24A.
Hermetically sealed.
Screened per MIL-PRF-19500 TX and TXV equivalent levels or per ESA 5000(6) Absolute Maximum Ratings (TA = 25o C unless otherwise noted) Input-to-Output Isolation Voltage.
. ±1.0 kVDC(1) Operating Temperature.

Datasheet Details

Part number	HCC240
Manufacturer	OPTEK Technologies
File Size	194.83 KB
Description	(HCC240 / HCC242) Surface Mount Optically Coupled Isolator
Datasheet	HCC240 Datasheet
Additional preview pages of the HCC240 datasheet.

📁 Similar Datasheet

HCC1000 - Hi-Reliability RAD Capable Optoisolator (TT)

HCC1001 - Hi-Reliability RAD Capable Optoisolator (TT)

HCC1002 - Hi-Reliability RAD Capable Optoisolator (TT)

HCC1210Bxxxx - Multilayer Ceramic Chip Capacitors (Holy Stone Enterprise)

HCC4000B - NOR GATE (STMicroelectronics)

HCC4001B - Rad-hard quad 2-input NOR gate (STMicroelectronics)

HCC4002B - Rad-hard dual 4-input NOR gate (STMicroelectronics)

HCC4006B - 18-STAGE STATIC SHIFT REGISTER (STMicroelectronics)

HCC4007UB - DUAL COMPLEMENTARY PAIR PLUS INVERTER (STMicroelectronics)

HCC4008B - 4-BIT FULL ADDER WITH PARALLEL CARRY OUTPUT (STMicroelectronics)

Full PDF Text Transcription

Click to expand full text

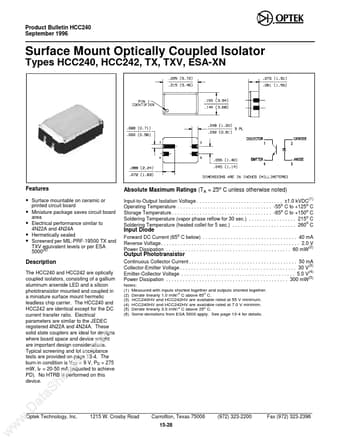

www.DataSheet4U.com Product Bulletin HCC240 September 1996 Surface Mount Optically Coupled Isolator Types HCC240, HCC242, TX, TXV, ESA-XN Features • Surface mountable on ceramic or printed circuit board • Miniature package saves circuit board area • Electrical performance similar to 4N22A and 4N24A • Hermetically sealed • Screened per MIL-PRF-19500 TX and TXV equivalent levels or per ESA 5000(6) Absolute Maximum Ratings (TA = 25o C unless otherwise noted) Input-to-Output Isolation Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±1.0 kVDC(1) Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55o C to +125o C Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
