HCC1000 - Hi-Reliability RAD Capable Optoisolator

Datasheet Summary

Description

These devices are similar to Optek’s 4N series of opto isolators with exception of the chips.

It is processed per MIL-PRF19500 TXV level and can be modified per customer SCDs.

Each device consists of a IRLED & NPN transistor mounted in either hermetic TO-78 metal can, 6 pin SMD or custom packaging.

Features

  • TID Capable to 100Krad (SI)/cm2 ELDRS (0.1rad/s).
  • Neutron capable to 1E12 neutrons (14MeV).
  • Processed to MIL-STD-19500 TXV level.
  • 1 KV electrical Isolation.
  • Base Contact provided for conventional transistor biasing.

📥 Download Datasheet

Datasheet preview – HCC1000

Datasheet Details

Part number HCC1000
Manufacturer TT
File Size 628.06 KB
Description Hi-Reliability RAD Capable Optoisolator
Datasheet download datasheet HCC1000 Datasheet
Additional preview pages of the HCC1000 datasheet.

📁 Similar Datasheet

  • HCC1210Bxxxx - Multilayer Ceramic Chip Capacitors (Holy Stone Enterprise)
  • HCC240 - (HCC240 / HCC242) Surface Mount Optically Coupled Isolator (OPTEK Technologies)
  • HCC242 - (HCC240 / HCC242) Surface Mount Optically Coupled Isolator (OPTEK Technologies)
  • HCC4000B - NOR GATE (STMicroelectronics)
  • HCC4001B - Rad-hard quad 2-input NOR gate (STMicroelectronics)
  • HCC4002B - Rad-hard dual 4-input NOR gate (STMicroelectronics)
  • HCC4006B - 18-STAGE STATIC SHIFT REGISTER (STMicroelectronics)
  • HCC4007UB - DUAL COMPLEMENTARY PAIR PLUS INVERTER (STMicroelectronics)
  • HCC4008B - 4-BIT FULL ADDER WITH PARALLEL CARRY OUTPUT (STMicroelectronics)
  • HCC4009UB - HEX BUFFER/CONVERTERS (STMicroelectronics)
Other Datasheets by TT
  • HCC1001 - Hi-Reliability RAD Capable Optoisolator
  • HCC1002 - Hi-Reliability RAD Capable Optoisolator

Full PDF Text Transcription

Click to expand full text

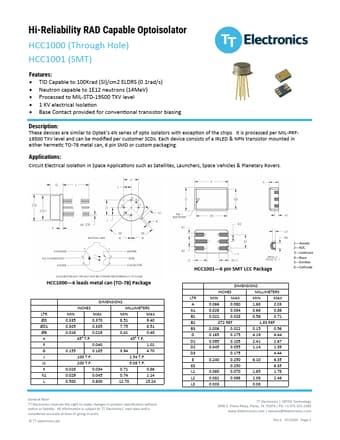

Hi-Reliability RAD Capable Optoisolator HCC1000 (Through Hole) HCC1001 (SMT) Features: • TID Capable to 100Krad (SI)/cm2 ELDRS (0.1rad/s) • Neutron capable to 1E12 neutrons (14MeV) • Processed to MIL-STD-19500 TXV level • 1 KV electrical Isolation • Base Contact provided for conventional transistor biasing Description: These devices are similar to Optek’s 4N series of opto isolators with exception of the chips. It is processed per MIL-PRF19500 TXV level and can be modified per customer SCDs. Each device consists of a IRLED & NPN transistor mounted in either hermetic TO-78 metal can, 6 pin SMD or custom packaging. Applications: Circuit Electrical Isolation in Space Applications such as Satellites, Launchers, Space Vehicles & Planetary Rovers.
