HCC4002B

Rad-hard dual 4-input NOR gate

STMicroelectronics

HCC4002B Features

* ESCC qualified

* 18 V Absolute maximum ratings

* 3 V to 15 V operating voltage

* Hermetic packages

* Rad-hard 100 krad (Si) TID

* SEL immune up to 119 MeV.cm²/mg

* SEU immune up to 119 MeV.cm²/mg

* -55 °C to +125 °C temperature range

HCC4002B General Description

The HCC40xxx and HCC45xxx series are composed of high-voltage CMOS functions, offering a set of highly noise tolerant gates, Flip-Flops, multiplexers, counters, bus interfaces, and several other functions. The radiation hardness, single event latch-up (SEL), single event upset (SEU) immunity, and th.

HCC4002B Datasheet (332.43 KB)

HCC4002B Datasheet Preview — Preview of HCC4002B PDF

Datasheet Details

Part number:

HCC4002B

Manufacturer:

STMicroelectronics ↗

File Size:

332.43 KB

Description:

Rad-hard dual 4-input nor gate.

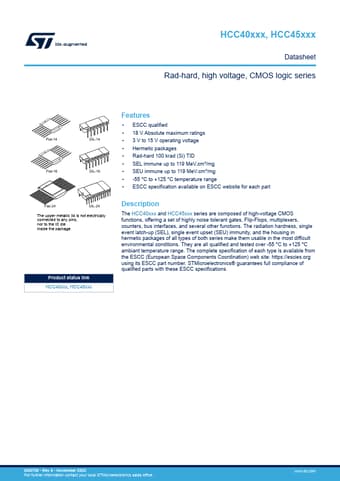

HCC40xxx, HCC45xxx Datasheet Rad-hard, high voltage, CMOS logic series Flat-14 Flat-16 DIL-14 DIL-16 Flat-24 DIL-24 The upper metallic lid is not.
