HCF4050B HEXhEX BUFFER/CONVERTERS

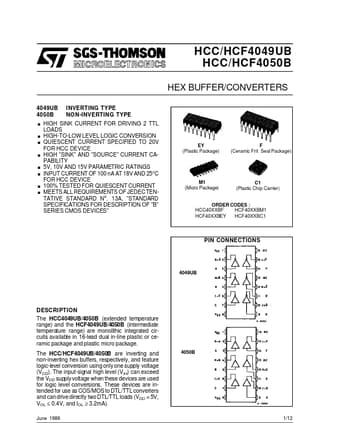

OF ”B” SERIES CMOS DEVICES” EY (Plastic Package) F (Ceramic Frit Seal Package) M1 (Micro Package) C1 (Plastic Chip Carrier) ORDER CODES : HCC40XXBF HCF40XXBM1 HCF40XXBEY HCF40XXBC1 PIN CONNECTIONS 4049UB DESCRIPTION The HCC4049UB/4050B (extended temperature range) and the HCF4049UB/4050B (in.

HCC/HCF4049UB HCC/HCF4050B HEX BUFFER/CONVERTERS 4049UB 4050B . . . . . . . . INVERTING TYPE NON-INVERTING TYPE HIGH SINK CURRENT FOR DRIVING 2 TTL LOADS HIGH-TO-LOW LEVEL LOGIC CONVERSION QUIESCENT CURRENT SPECIFIED TO 20V FOR HCC DEVICE HIGH ”SINK” AND ”SOURCE” CURRENT CAPABILITY 5V, 10V AND 15V PARAMETRIC RATINGS INPUT CURRENT OF 100 nA AT 18V AND 25°C FOR HCC DEVICE 100% TESTED FOR QUIESCENT CURRENT MEETS ALL REQUIREMENTS OF JEDEC TENTATIVE STANDARD No. 13A, ”STANDARD SPECIFICATIONS FOR D.
