HCF4051B Datasheet, MULTIPLEXERS-DEMULTIPLEXERS, STMicroelectronics

HCF4051B Features

• Multiplexers-demultiplexers h must not exceed 0,8 volt (valvulated from RON values shown in ELECTRICAL CHARACTERISTICS CHART). No VDD current will flow through RL if the switch current flows into lead 3 on the HCC

PDF File Details

Part number:

HCF4051B

Manufacturer:

STMicroelectronics ↗

File Size:

366.41kb

Download:

📄 Datasheet

Description:

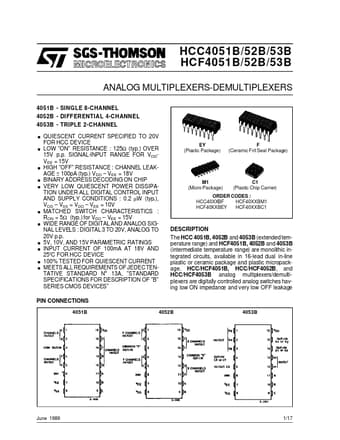

Analog multiplexers-demultiplexers. OF ”B” SERIES CMOS DEVICES” EY (Plastic Package) F (Ceramic Frit Seal Package) M1 (Micro Package) C1 (Plastic Chip Carrier) ORDE

HCF4051B Application

• Applications TYPICAL TIME-DIVISION APPLICATION OF THE 4052B SPECIAL CONSIDERATIONS Control of analog signals up to 20V peak-to-peak can be achieved
