HCF4053B Datasheet - STMicroelectronics

HCF4053B TRIPLE 2-CHANNEL ANALOG MULTIPLEXER/DEMULTIPLEXER

OF B SERIES CMOS teDEVICES" oleDESCRI.

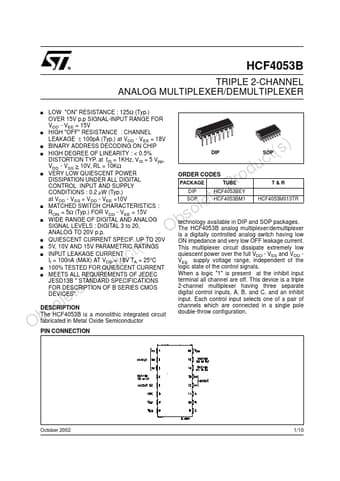

HCF4053B TRIPLE 2-CHANNEL ANALOG MULTIPLEXER/DEMULTIPLEXER s LOW "ON" RESISTANCE : 125Ω (Typ.) OVER 15V p.p SIGNAL-INPUT RANGE FOR VDD - VEE = 15V s HIGH "OFF" RESISTANCE : CHANNEL LEAKAGE ± 100pA (Typ.) at VDD - VEE = 18V )s BINARY ADDRESS DECODING ON CHIP t(ss HIGH DEGREE OF LINEARITY : < 0.5% DISTORTION TYP. at fIS = 1KHz, VIS = 5 Vpp, ucVDD - VSS > 10V, RL = 10KΩ ds VERY LOW QUIESCENT POWER roDISSIPATION UNDER ALL DIGITAL CONTROL INPUT AND SUPPLY PCONDITIONS : 0.2 µW (Typ.) teat VDD - V.

HCF4053B_STMicroelectronics.pdf

Preview of HCF4053B PDF
HCF4053B Datasheet Preview Page 2 HCF4053B Datasheet Preview Page 3

Datasheet Details

Part number:

HCF4053B

Manufacturer:

STMicroelectronics ↗

File Size:

471.89 KB

Description:

Triple 2-channel analog multiplexer/demultiplexer.
