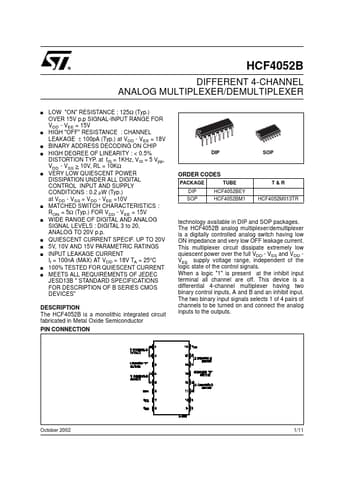

HCF4052B DIFFERENT 4-CHANNEL ANALOG MULTIPLEXERS-DEMULTIPLEXERS

OF B SERIES CMOS DEVICES" DESCRIPTION The HCF4052B is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor PIN CONNECTION DIP SOP ORDER CODES PACKAGE TUBE DIP SOP HCF4052BEY HCF4052BM1 T&R HCF4052M013TR technology available in DIP and SOP packages. The HCF4052B analog mult.
HCF4052B DIFFERENT 4-CHANNEL ANALOG MULTIPLEXER/DEMULTIPLEXER s LOW "ON" RESISTANCE : 125Ω (Typ.) OVER 15V p.p SIGNAL-INPUT RANGE FOR VDD - VEE = 15V s HIGH "OFF" RESISTANCE : CHANNEL LEAKAGE ± 100pA (Typ.) at VDD - VEE = 18V s BINARY ADDRESS DECODING ON CHIP s HIGH DEGREE OF LINEARITY : < 0.5% DISTORTION TYP. at fIS = 1KHz, VIS = 5 Vpp, VDD - VSS > 10V, RL = 10KΩ s VERY LOW QUIESCENT POWER DISSIPATION UNDER ALL DIGITAL CONTROL INPUT AND SUPPLY CONDITIONS : 0.2 µW (Typ.) at VDD - VSS = VDD - VE.
