LSM6DSO

6-axis IMU

LSM6DSO Features

* Supply current: 0.55 mA in combo high-performance mode

* “Always-on" experience with low power consumption for both accelerometer and gyroscope

* Smart FIFO up to 9 KB

* Android compliant

* ±2/±4/±8/±16 g full scale

* ±125/±250/±500/±1000/±2000 dps f

LSM6DSO Datasheet (2.19 MB)

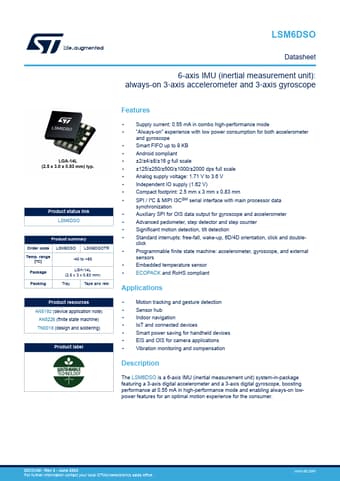

Preview of LSM6DSO PDF

Datasheet Details

Part number:

LSM6DSO

Manufacturer:

STMicroelectronics ↗

File Size:

2.19 MB

Description:

6-axis imu.
LSM6DSO Datasheet 6-axis IMU (inertial measurement unit): always-on 3‑axis accelerometer and 3‑axis gyroscope Product status link LSM6DSO Product su.
