M48Z19 Datasheet - STMicroelectronics

M48Z19 - CMOS 8K x 8 ZEROPOWER SRAM

The M48Z09,19 ZEROPOWER® RAM is an 8K x 8 non-volatile static RAM which is pin and function compatible with the MK48Z09,19.

A special 28 pin 600mil DIP CAPHAT™ package houses the M48Z09,19 silicon with a long life lithium button cell to form a highly integrated battery backed-up memory solution.

Tab

M48Z09 M48Z19 CMOS 8K x 8 ZEROPOWER SRAM INTEGRATED ULTRA LOW POWER SRAM, POWER-FAIL CONTROL CIRCUIT and BATTERY UNLIMITED WRITE CYCLES READ CYCLE TIME EQUALS WRITE CYCLE TIME AUTOMATIC POWER-FAIL CHIP DESELECT and WRITE PROTECTION POWER-FAIL INTERRUPT CHOICE of TWO WRITE PROTECT VOLTAGES: M48Z09: 4.5V ≤ VPFD ≤ 4.75V M48Z19: 4.2V ≤ VPFD ≤ 4.5V SELF CONTAINED BATTERY in the CAPHAT DIP PACKAGE 11 YEARS of DATA RETENTION in the ABSENCE of POWER PIN and FUNCTION COMPATIBLE with t

M48Z19_STMicroelectronics.pdf

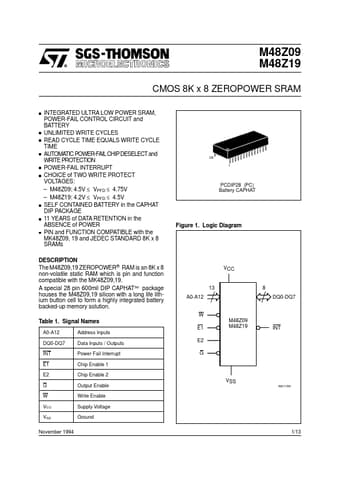

Preview of M48Z19 PDF
M48Z19 Datasheet Preview Page 2 M48Z19 Datasheet Preview Page 3

Datasheet Details

Part number:

M48Z19

Manufacturer:

STMicroelectronics ↗

File Size:

122.95 KB

Description:

Cmos 8k x 8 zeropower sram.
