M48Z35

256-Kbit SRAM

M48Z35 Features

* Integrated, ultra low power SRAM, power-fail control circuit, and battery

* READ cycle time equals WRITE cycle time

* Automatic power-fail chip deselect and WRITE protection

* WRITE protect voltages: (VPFD = power-fail deselect voltage)

* M48Z35: VCC = 4.75

M48Z35 General Description

The M48Z35/Y ZEROPOWER® RAM is a 32 K x 8, non-volatile static RAM that integrates powerfail deselect circuitry and battery control logic on a single die. The monolithic chip is available in two special packages to provide a highly integrated battery-backed memory solution. The M48Z35/Y is a non-vol.

M48Z35 Datasheet (434.19 KB)

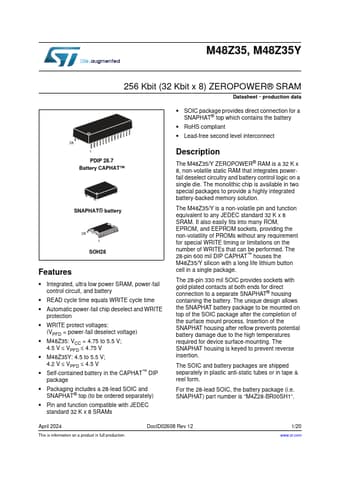

Preview of M48Z35 PDF

Datasheet Details

Part number:

M48Z35

Manufacturer:

STMicroelectronics ↗

File Size:

434.19 KB

Description:

256-kbit sram.
M48Z35, M48Z35Y 256 Kbit (32 Kbit x 8) ZEROPOWER® SRAM Datasheet - production data 28 1 PDIP 28.7 Battery CAPHAT™ SNAPHAT® battery 28 1 SOH28 Featur.
