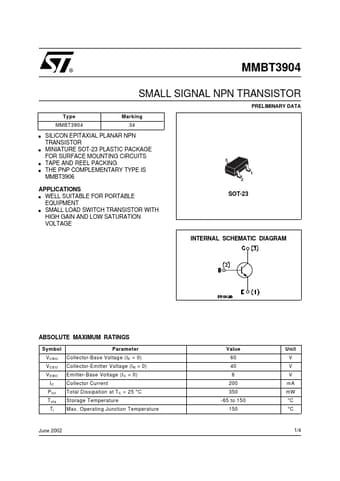

MMBT3904
SMALL SIGNAL NPN TRANSISTOR
PRELIMINARY DATA
Type MMBT3904
s
Marking 34
s
s s
SILICON EPITAXIAL PLANAR NPN TRANSISTOR MINIATURE SOT-23 PLASTIC PACKAGE FOR SURFACE MOUNTING CIRCUITS TAPE AND REEL PACKING THE PNP COMPLEMENTARY TYPE IS MMBT3906 SOT-23
APPLICATIONS WELL SUITABLE FOR PORTABLE EQUIPMENT s SMALL LOAD SWITCH TRANSISTOR WITH HIGH GAIN AND LOW SATURATION VOLTAGE
s
INTERNAL SCHEMATIC DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol V CBO V CEO V EBO IC P tot T stg Tj Parameter Collector-Base Voltage (I E = 0) Collector-Emitter Voltage (I B = 0) Emitter-Base Voltage (I C = 0) Collector Current Total Dissipation at T C = 25 C Storage Temperature Max.
