P11NM80 N-CHANNEL Power MOSFET

P11NM80 Description

STB11NM80 - STF11NM80 STP11NM80 - STW11NM80 N-channel 800V - 0.35Ω - 11A - TO-220/FP- D2PAK - TO-247 MDmesh™ Power MOSFET General .
The MDmesh™ associates the multiple drain process with the Company’s PowerMesh™ horizontal layout assuring an outstanding low onresistance.

P11NM80 Features

* Type VDSS RDS(on) RDS(on)
* Qg STB11NM80 800V < 0.40Ω 14Ω
* nC STF11NM80 800V < 0.40Ω 14Ω
* nC STP11NM80 800V < 0.40Ω 14Ω
* nC STW11NM80 800V < 0.40Ω 14Ω
* nC ID 11A 11A 11A 11A
* Low input capacitance and gate charge
* Low gate input resistance
* Best RDS(on)
* Qg i

P11NM80 Applications

* Switching application TO-247 3 1 D²PAK 3 2 1 TO-220 3 2 1 TO-220FP Internal schematic diagram Order codes Part number STB11NM80 STF11NM80 STP11NM80 STW11NM80 Marking B11NM80 F11NM80 P11NM80 W11NM80 Package D²PAK TO-220FP TO-220 TO-247 Packaging Tape & reel Tube Tube Tube July 2006 R

📥 Download Datasheet

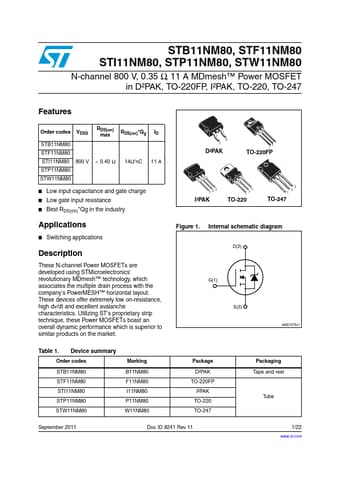

Preview of P11NM80 PDF
datasheet Preview Page 2 datasheet Preview Page 3
