P6NK50Z

STP6NK50Z

STMicroelectronics

P6NK50Z Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta

P6NK50Z General Description

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements .

P6NK50Z Datasheet (398.21 KB)

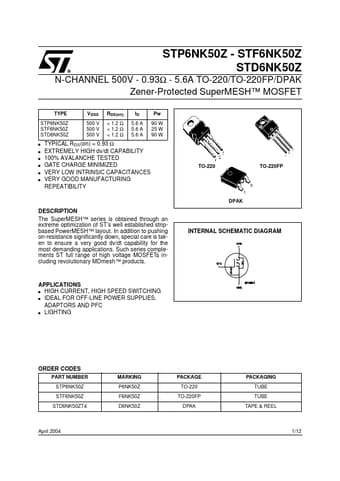

P6NK50Z Datasheet Preview — Preview of P6NK50Z PDF

Datasheet Details

Part number:

P6NK50Z

Manufacturer:

STMicroelectronics ↗

File Size:

398.21 KB

Description:

Stp6nk50z.
STP6NK50Z - STF6NK50Z STD6NK50Z N-CHANNEL 500V - 0.93Ω - 5.6A TO-220/TO-220FP/DPAK Zener-Protected SuperMESH™ MOSFET TYPE VDSS RDS(on) ID Pw STP6.
