ST2129

2-bit dual supply level translator

ST2129 Features

* 42 MHz: 84 Mbps (max) data rate at VL = 1.8 V, VCC = 3.3 V

* Bidirectional level translation without direction control pin

* Wide voltage range (VCC ≥ VL):

* VL ranges from 1.65 to 3.6 V

* VCC ranges from 1.65 to 5.5 V

* Power down mode feature - when VCC supply is

ST2129 General Description

The ST2129 is a 2-bit dual supply level translator which provides the level shifting capability to allow data transfer in a multi-voltage system. Externally applied voltages, VCC and VL, set the logic levels on either side of the device. Its architecture allows bidirectional level translation withou.

ST2129 Datasheet (431.63 KB)

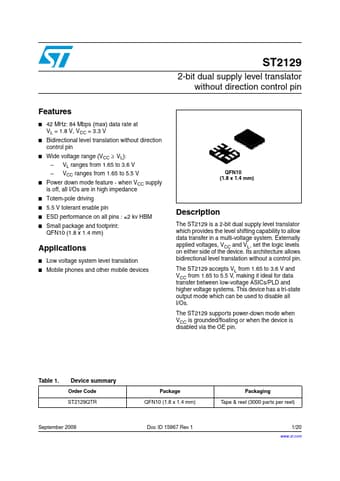

Preview of ST2129 PDF

Datasheet Details

Part number:

ST2129

Manufacturer:

STMicroelectronics ↗

File Size:

431.63 KB

Description:

2-bit dual supply level translator.
