ST2129B

2-bit dual supply level translator

ST2129B Features

* 45 MHz: 90 Mbps (max.) data rate  at VL = 1.8 V, VCC = 3.3 V

* Bi-directional level translation without direction control pin

* Wide voltage range (VL ≤ VCC):

* VL ranges from 1.65 to 3.6 V

* VCC ranges from VL to 5.5 V

* Totem pole driving

* 5.5 V tolerant Ena

ST2129B General Description

The ST2129B device is a 2-bit dual supply level translator which provides the level shifting capability to allow data transfer in a multi-voltage system. Externally applied voltages, VCC and VL, set the logic levels on either side of the device.  Its architecture allows bi-directional level transla.

ST2129B Datasheet (460.36 KB)

Preview of ST2129B PDF

Datasheet Details

Part number:

ST2129B

Manufacturer:

STMicroelectronics ↗

File Size:

460.36 KB

Description:

2-bit dual supply level translator.

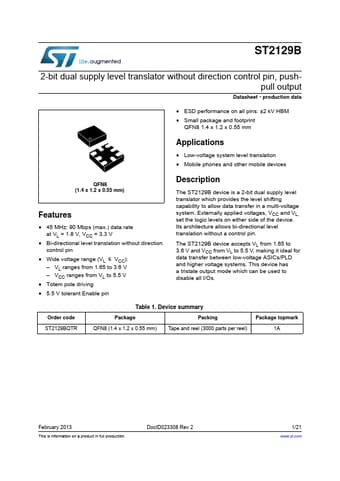

ST2129B 2-bit dual supply level translator without direction control pin, pushpull output Datasheet - production data
* ESD performance on all pi.
