ST2100 Broadband powerline communication SoC optimized

STMicroelectronics

Description

ST2100 Broadband powerline communication SoC optimized for audio/video streaming and consumer applications Datasheet - production data * JPEG co.

📥 Download Datasheet

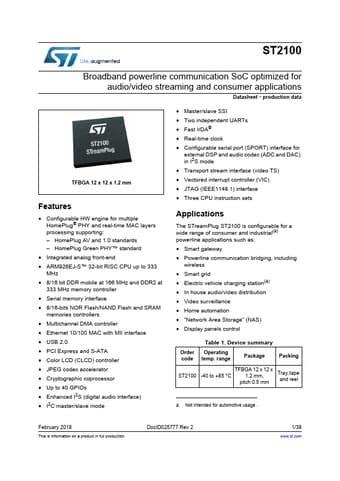

ST2100 Datasheet Preview — Preview of ST2100 PDF

Datasheet Specifications

Part number: ST2100
Manufacturer: STMicroelectronics ↗
File Size: 449.52 KB
Datasheet: ST2100-STMicroelectronics.pdf
Description: Broadband powerline communication SoC optimized

Features

* Configurable HW engine for multiple HomePlug® PHY and real-time MAC layers processing supporting:
* Transport stream interface (video TS)
* Vectored interrupt controller (VIC)
* JTAG (IEEE1149.1) interface
* Three CPU instruction sets
* HomePlug AV and 1.0 standards

Applications

* Datasheet - production data
* JPEG codec accelerator
* Cryptographic coprocessor
* Up to 40 GPIOs
* Enhanced I2S (digital audio interface)
* I2C master/slave mode
* Master/slave SSI
* Two independent UARTs
* Fast IrDA®
* Real-time clock TFBGA 12 x 12 x 1.2
