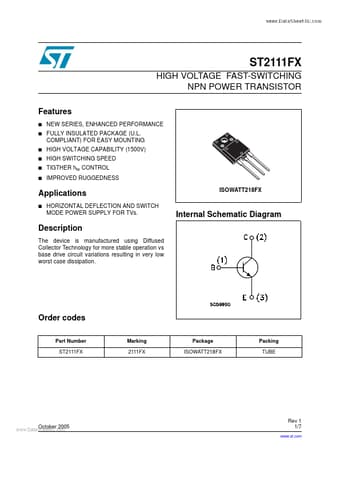

ST2111FX HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR

The device is manufactured using Diffused Collector Technology for more stable operation vs base drive circuit variations resulting in very low worst case dissipation. Order codes Part Number ST2111FX Marking 2111FX Package ISOWATT218FX Packing TUBE www.DataSheet4U.com October 2005 Rev 1 1/7 www.

ST2111FX Features

* NEW SERIES, ENHANCED PERFORMANCE FULLY INSULATED PACKAGE (U.L. COMPLIANT) FOR EASY MOUNTING HIGH VOLTAGE CAPABILITY (1500V) HIGH SWITCHING SPEED TIGTHER hfe CONTROL IMPROVED RUGGEDNESS ISOWATT218FX

* Applications

* HORIZONTAL DEFLECTION AND SWITCH MODE POWER
