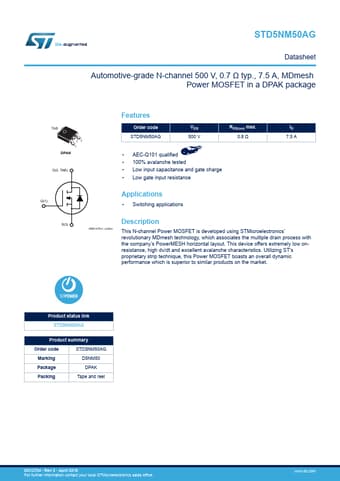

STD5NM50AG Datasheet, Mosfet, STMicroelectronics

STD5NM50AG Features

• Mosfet Order code STD5NM50AG VDS 500 V RDS(on) max. 0.8 Ω
• AEC-Q101 qualified
• 100% avalanche tested
• Low input capacitance and gate charge
• Low gate inp

PDF File Details

Part number:

STD5NM50AG

Manufacturer:

STMicroelectronics ↗

File Size:

621.89kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. AM01475v1_noZen This N-channel Power MOSFET is developed using STMicroelectronics' revolutionary MDmesh technology, which associate

STD5NM50AG Application

• Applications G(1)
• Switching applications S(3) Description AM01475v1_noZen This N-channel Power MOSFET is developed using STMicroelectro
