STD7NM50N

N-channel Power MOSFET

STMicroelectronics

STD7NM50N Features

* Type STD7NM50N STD7NM50N-1 STF7NM50N STP7NM50N VDSS (@Tjmax) 550V 550V 550V 550V RDS(on)

STD7NM50N General Description

This device is realized with the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding high efficienc.

STD7NM50N Datasheet (461.91 KB)

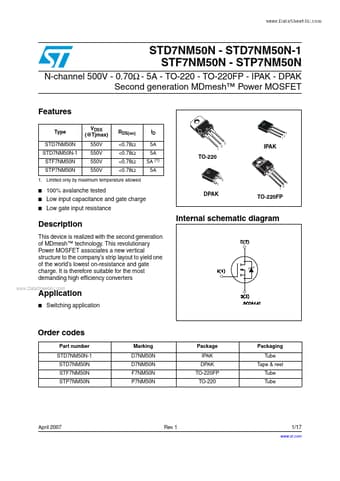

STD7NM50N Datasheet Preview — Preview of STD7NM50N PDF

Datasheet Details

Part number:

STD7NM50N

Manufacturer:

STMicroelectronics ↗

File Size:

461.91 KB

Description:

N-channel power mosfet.
STD7NM50N - STD7NM50N-1 STF7NM50N - STP7NM50N N-channel 500V - 0.70Ω - 5A - TO-220 - TO-220FP - IPAK - DPAK Second generation MDmesh™ Power MOSFET Fea.
