STE2004 102 X 65 SINGLE CHIP LCD CONTROLLER / DRIVER

* * * The STE2004 is a low power CMOS LCD controller driver. Designed to drive a 65 rows by 102 columns graphic display, it provides all necessary functions in a single chip, including on-chip LCD supply and bias voltages generators, resulting in a minimum of externals components and i.

STE2004 Features

* 102 x 65 bits Display Data RAM Programmable MUX rate Programmable Frame Rate X,Y Programmable Carriage Return Dual Partial Display Mode Row by Row Scrolling N-Line Inversion Automatic data RAM Blanking procedure Selectable Input Interface:

* I2C Bus Fast and Hs-mode (read and write)

STE2004_STMicroelectronics.pdf

Preview of STE2004 PDF

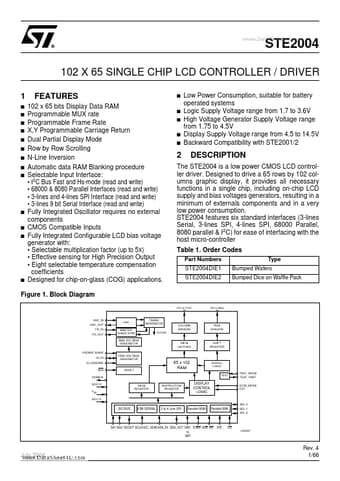

STE2004 Datasheet Preview Page 2 STE2004 Datasheet Preview Page 3

Datasheet Details

Part number:

STE2004

Manufacturer:

STMicroelectronics ↗

File Size:

1.06 MB

Description:

102 x 65 single chip lcd controller / driver.
