STE2102 Datasheet, Controller/driver, STMicroelectronics

STE2102 Features

  • Controller/driver Features Benefits Can drive panel sizes up to 4” Suitable for several application
      – portable multimedia
      – digital still camera
      – printers

PDF File Details

Part number:

STE2102

Manufacturer:

STMicroelectronics ↗

File Size:

62.72kb

Download:

📄 Datasheet

Description:

240 x 320rgb single-chip true 262k colors ramless lcd controller/driver. The STE2102 is a low power CMOS single-chip TFT controller/driver featuring an extremely low current consumption thanks to an innovat

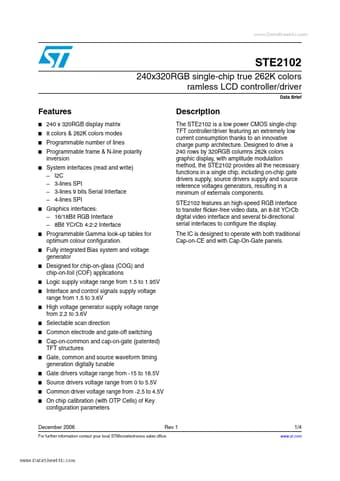

Datasheet Preview: STE2102 📥 Download PDF (62.72kb)
Page 2 of STE2102 Page 3 of STE2102

STE2102 Application

  • Applications Logic supply voltage range from 1.5 to 1.95V Interface and control signals supply voltage range from 1.5 to 3.6V High voltage generator
