STE2007 Datasheet - STMicroelectronics

STE2007 96 X 68 single-chip LCD controller/driver

The STE2007 is a low power LCD driver, capable to drive 96 columns and up to 68 lines, designed for monochrome displays. The STE2007 includes fully integrated bias voltage generator (up to 5x multiplication factor), and internal oscillator, thus reducing to minimum the number of external components .

STE2007 Features

* Low power consumption, suitable for battery operated systems Interfaces supply voltage range from 1.6 to 3.6V High voltage generator supply voltage range from 2.4 to 3.6V Display supply voltage range from 3 to 13.2V 68 x 96 bits Display Data RAM 33,4

STE2007_STMicroelectronics.pdf

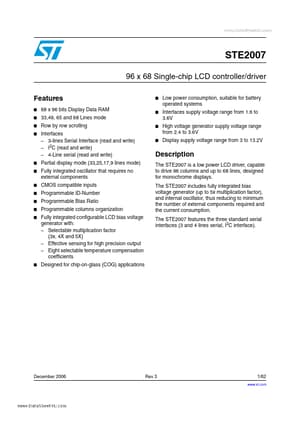

Preview of STE2007 PDF
STE2007 Datasheet Preview Page 2 STE2007 Datasheet Preview Page 3

Datasheet Details

Part number:

STE2007

Manufacturer:

STMicroelectronics ↗

File Size:

783.72 KB

Description:

96 x 68 single-chip lcd controller/driver.
