STE2130S - 240RGB X 320 single chip true 262k color controller/driver

STMicroelectronics

Datasheet Details

Part number	STE2130S
Manufacturer	STMicroelectronics
File Size	83.30 KB
Description	240RGB X 320 single chip true 262k color controller/driver
Datasheet	STE2130S_STMicroelectronics.pdf

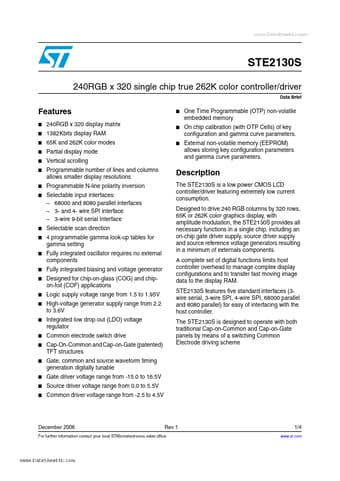

The STE2130S is a low power CMOS LCD controller/driver featuring extremely low current consumption.

Full RAM integrated, up to 262kcol Integrated LDO Fully integrated OTP for parameters setting EEPROM I/F selectable for parameters setting Up to 4 gamma curves programmable for gamma correction Integrated oscillator and charge pump ◊reduced number of external components Low power consumption solution Functional block diagram Figure 1. Functional block diagram 99 -bit - bit 3wires 3wires // 88 - -bit bit 3&4 3&4 wires wires Serial Serial Interfaces Inte.
